Features
1. Working temperature: -20℃ to +50℃
2. Convenient to install
3. Flexible and safe to use
4. Excellent abrasion-resistant and bending-resistant
If you have any questions or concerns about our products, please feel free to contact us
| DN(mm) | Flange OD (mm) |
Flange thickness (mm) |
P.C.D. (mm) |
No.of Hole | Hole dia. (mm) |
Length (mm) |
|---|---|---|---|---|---|---|
| 500±5 | 775±3 | 35±2 | 725±1 | 20 | 30±1 | 11800 |
NOTE: The specifications are for reference, the Ceramic Floating Hoses can be customized according to the client’s requests.
Structure and Material:
1.Inner rubber: Black abrasion resistant Natural Rubber.
2.Reinforcement layer: Multiple plies of polyester fabric with a spring steel helix wire.
3.Cover rubber: Neoprene or composed of natural rubber and synthetic rubber.

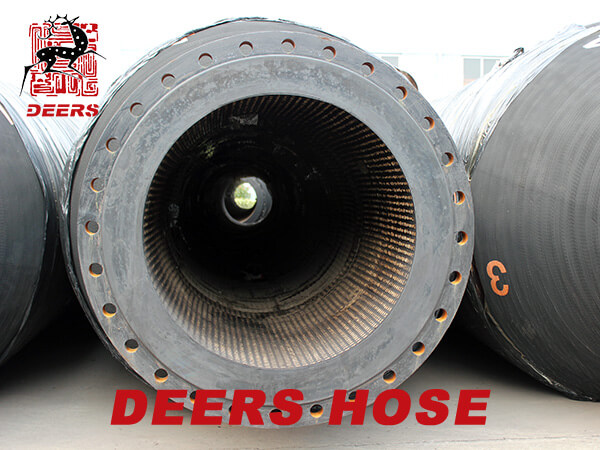

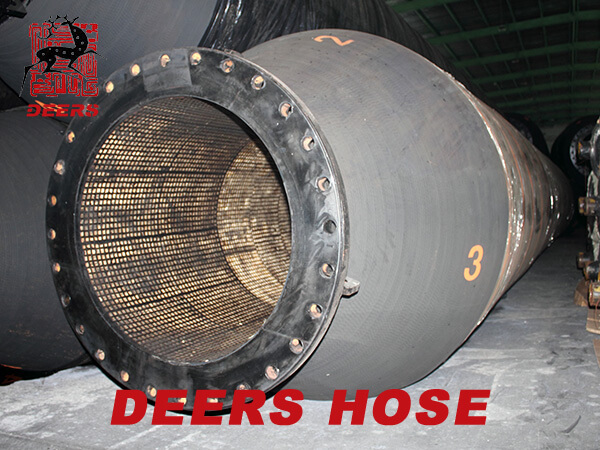

Good quality high wear-resistant ceramic lined rubber hose.
In the newly developed ceramic floating hose, ceramic tips are used to eliminate a disadvantage in a conventional ceramic hose.
It has higher abrasion resistance while maintaining flexibility. The standard producible ceramic hose is limited to 10 m in length and 30 to 300 mm in hose diameter. The flexible pipes or hose are lining with ceramics balls are used to reduce the internal costs.
Ceramic floating hose has a circular disk-shaped ceramic tip as compared with the conventional ball-shaped ceramic tip and shows several times higher abrasion resistance.
