NOTE: The specifications are for reference, the Discharge Hoses can be customized according to the client’s requests.

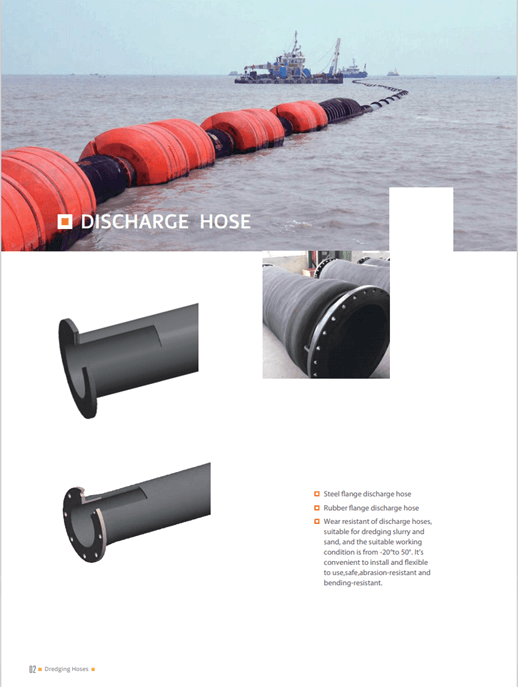

Discharge hose is used with dredgers for silt/gravels conveyance.
It is often connected with steel pipes or HDPE pipes. The suitable transmission medium is usually mud, clay, fine sand, fine-mid sand, and so on.
It can be equipped with all the different types of flanges. It is available in any size and the maximum bursting pressure can up to 7.5Mpa.
Liner thickness specified applies to the inside of the hose as well as the flanges. Tricolour indicators are optionally available.
Features
1. Discharge hose is used with dredgers for silt/gravel conveyance.
2.Wall thickness range: from 15mm up to 100mm.
3.Suitable working temperature: from -20℃ to +50℃.
4.Abrasion-resistant and bending –available.
5.Convenient to install, flexible to use and safe.
Structure and Material：
1. Wear lining: composed of wear-proof natural rubber and synthetic rubber
2. Reinforcement layer: composed of high strength rubber dipped chemical fiber and reinforced by spiral metal wire.
3. Outer Cover: composed of natural rubber and synthetic rubber.

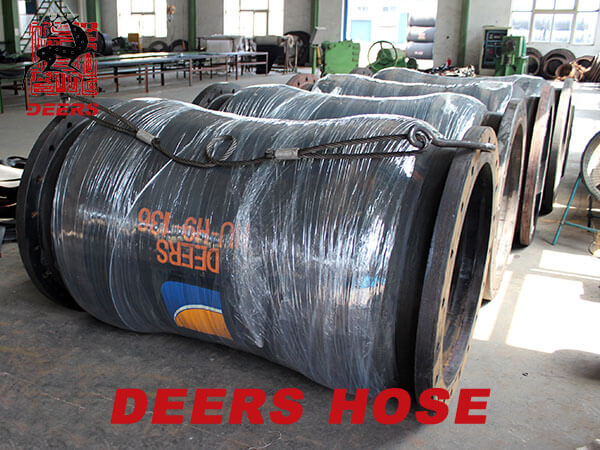

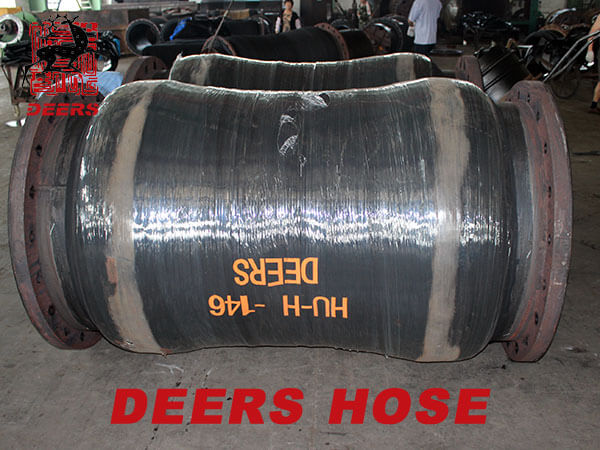

Welcome to visit our workshop for manufacturing discharge hose. The production technology of our discharge hose is from Europe and we manufacture that according to the standard ISO28017.
