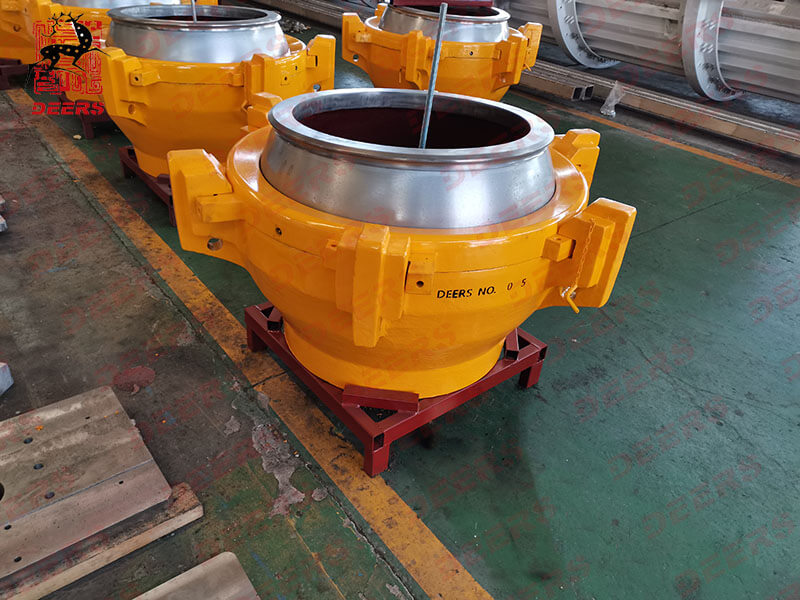

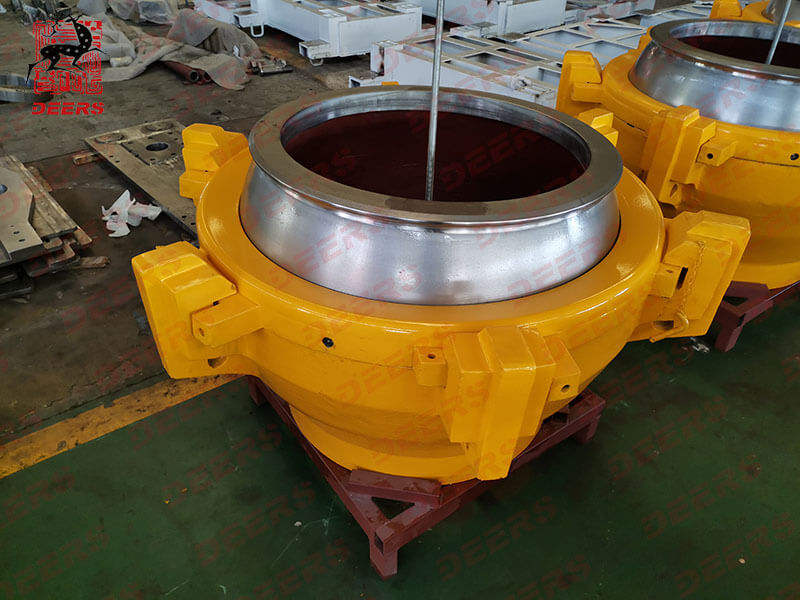

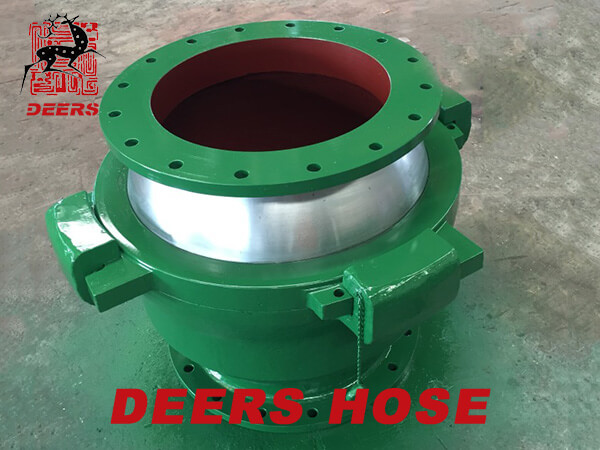

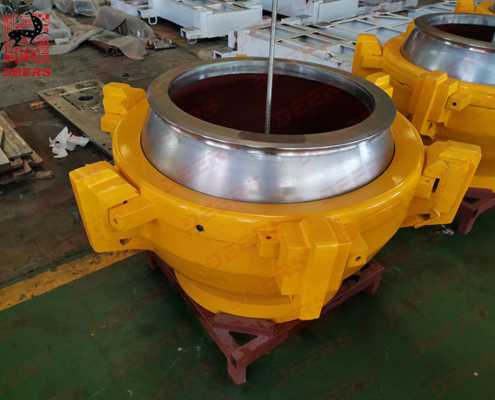

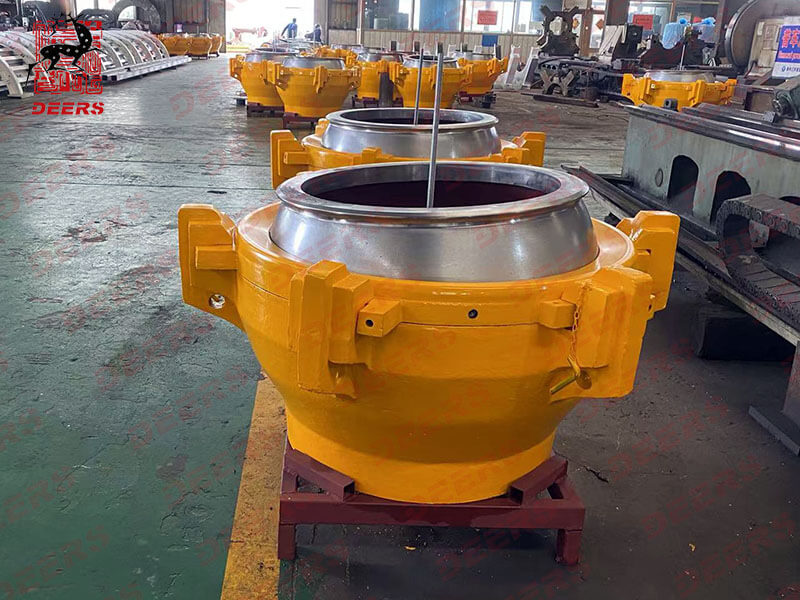

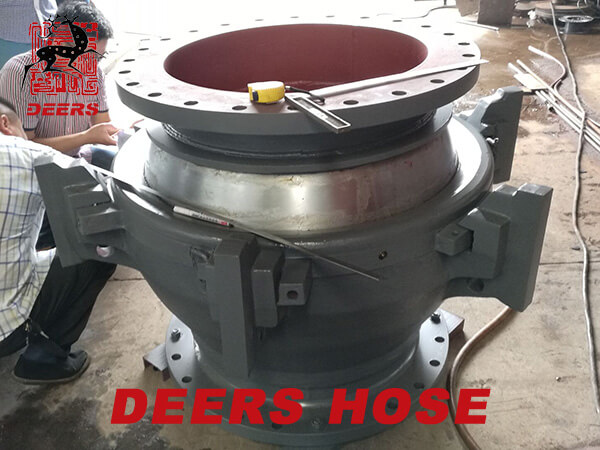

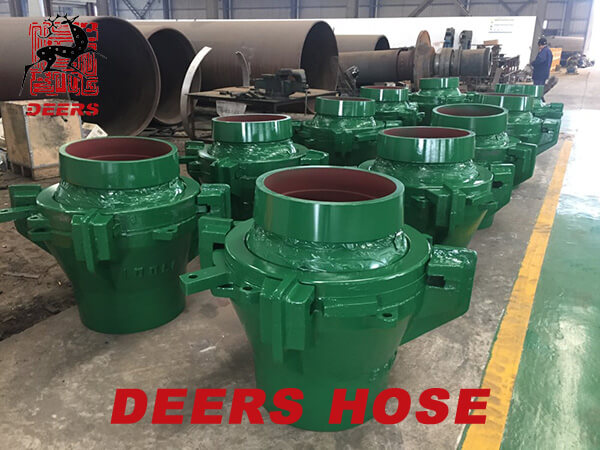

Dredge Ball Joint

-Dredge ball joint Specification-

NOTE: The specifications are for reference, the Dredge Ball Joint can be customized according to the client’s requests.

Nanjing Deers Mechanical ball joints for dredgers are optimally designed and specially used for dredging and mining industries. Our products are based on the European standard. However, the optimal material we used for coating the surface is better than the European standard.

We optimize the structure of the passage and keep the same flow capacity when dredging the material from a different angle. For the size of this mechanical ball joint, we accept custom-made, sizes from ID 250 to ID1200.

Dredge ball joint components

• Gland
• Ball
• Liner
• Case

Dredge ball joint design

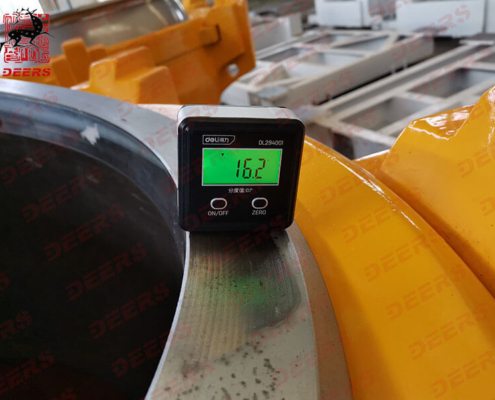

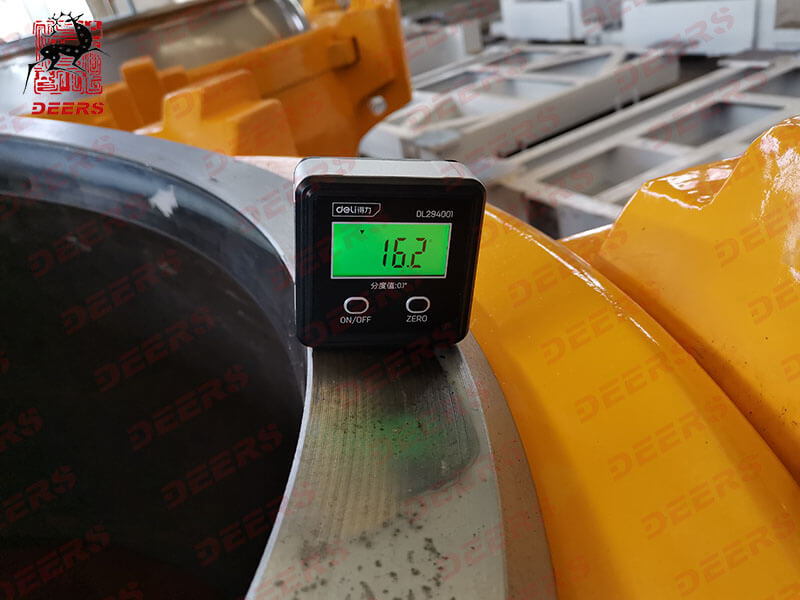

The inner diameter of dredge ball joint pipes ranges from 400 mm to 1200 mm. Dredge ball joint liners can be produced from steel and hard iron materials. To allow for variations of the tilting angle, the ball turning angle of a dredge ball joint is 15 degrees to 18 degrees and the discharge pipe variation for a dredge ball joint ranges from 10 mm to 30 mm. The dredge ball joints are made to operate at low, medium, and high pressure.

Dredge ball joint materials

Dredge ball joints can be made from Cast iron of manganese, chromium, nickel, and molybdenum alloy, ductile manganese iron, or hard chromium iron.
