Features
1.Good Toughness, divulsion resistance, shock resistance
2. Low weight, convenient to install, and to demount.
3. Anti-wave, corrosion resistance, aging resistance, and long lifetime.
4. Reuse is available.
If you have any questions or concerns about our products, please feel free to contact us

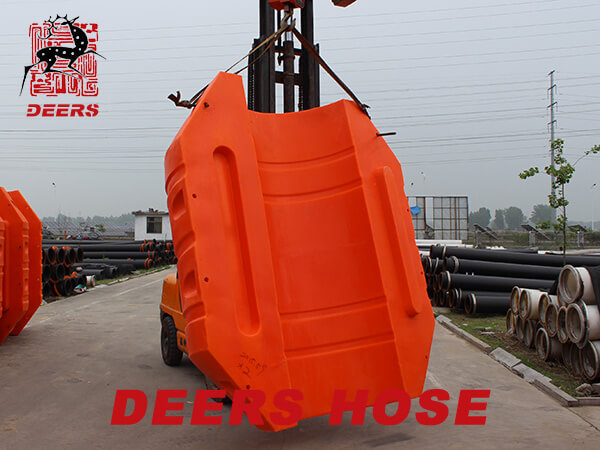

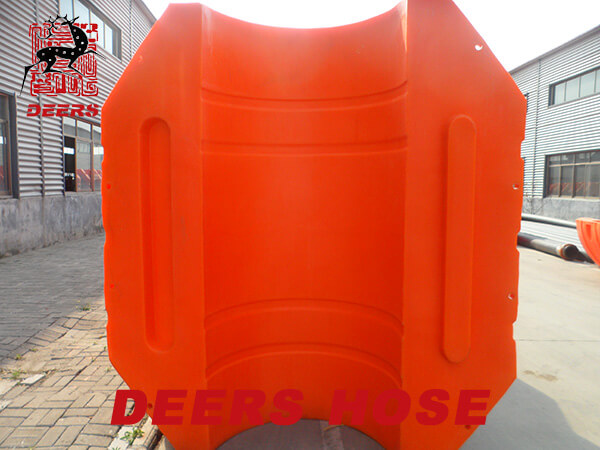

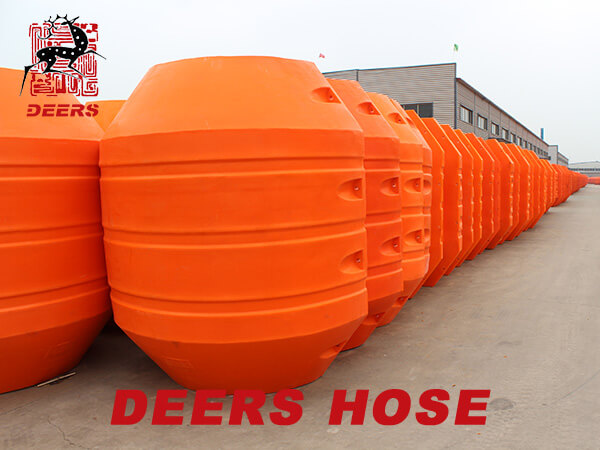

Pipe floats are always used with HDPE pipe and rubber hoses to provide great buoyancy. The shell of pipe floats is made of polythene, filling with PU foam. As the floating bodies of discharge hose on the water, it has the advantage of high float load capacity, shock resistance, aging resistance, and so on. It is the ideal substitute products for traditional float pontoon.
ID 630 Pipe Floats Drawing
| Shell of MDPE pipe floats is made from excellent flexibility of medium-density polyethylene material, inside of the shell is filled with high strength polyurethane foam. | ||||
| Pipe I.D. | FloaterI.D. | FloaterO.D. | FloaterLength | Remark |
| mm | mm | mm | mm | |
| 200 | 220 | 500 | 800 | 2 pieces per complete floater |
| 285 | 300 | 700 | 1200 | |
| 350 | 375 | 1100 | 1100 | |
| 400 | 414 | 1100 | 1200 | |
| 414 | 430 | 1200 | 1200 | |
| 450 | 480 | 1300 | 1300 | |
| 500 | 530 | 1400 | 1500 | |
| 550 | 580 | 1400 | 1600 | |
| 600 | 630 | 1400 | 1700 | |
| 650 | 680 | 1480 | 1800 | |
| 700 | 730 | 1600 | 1900 | |
| 750 | 780 | 1600 | 2000 | |
| 800 | 830 | 1800 | 2000 | |
| 850 | 880 | 1800 | 2200 | |
| 900 | 940 | 2200 | 2500 | |
|
Other sizes of floaters can be made upon request |
||||
NOTE: The specifications are for reference, the Pipe Floats can be customized according to the client’s requests.

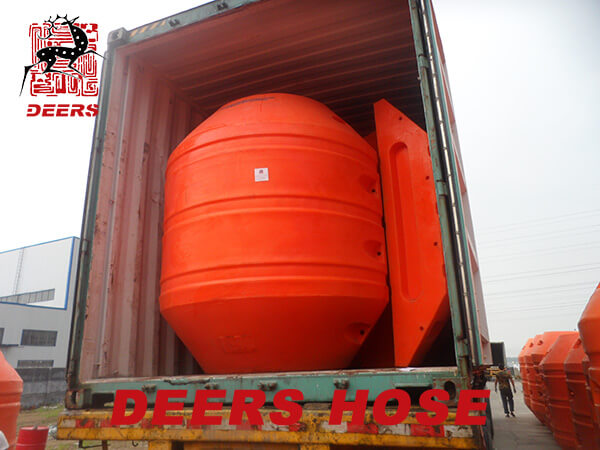

Because This kind of floaters takes up a large space. So We optimized the loading to save the space and meanwhile, the floaters can be protected well during shipment. By doing so, we save shipping costs for our customers.
